Breadth-first search (graphs)

Recall BFS to for the basic idea.

Differences compared to BFS for trees

• a visited array is required.
• there will not be a root node, instead, a given source must me.

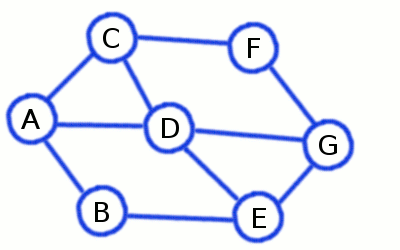

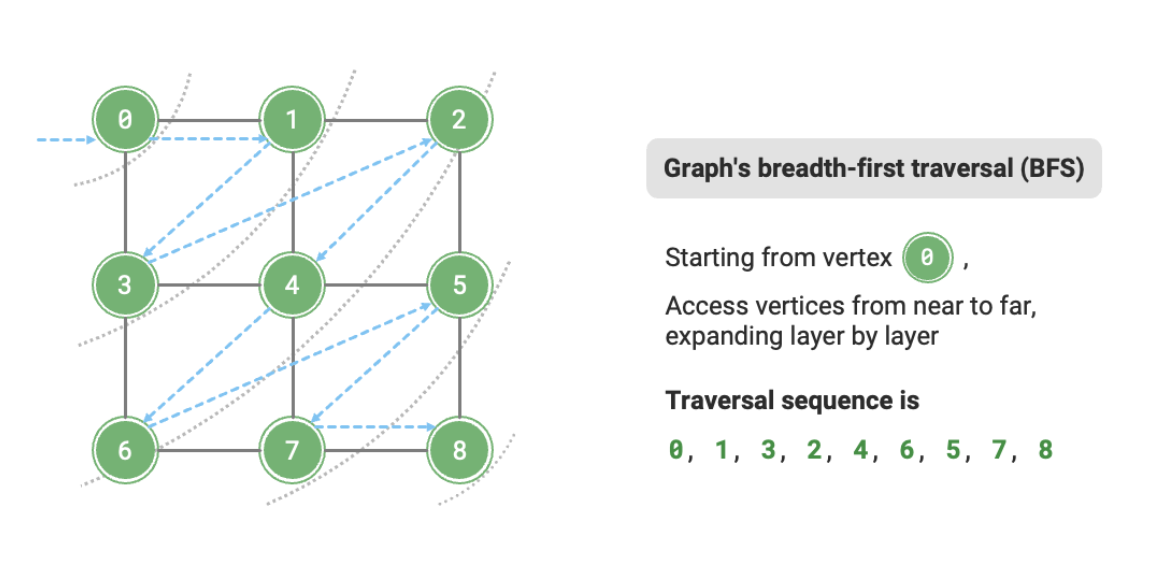

Visualisation

Implementation

Generalised steps

1. Initialization: Enqueue the given source vertex into a queue and mark it as visited.
2. Exploration: While the queue is not empty:
   • Dequeue a node from the queue and visit it (e.g., print its value).
   • For each unvisited neighbor of the dequeued node:
     • Enqueue the neighbor into the queue.
     • Mark the neighbor as visited.
3. Termination: Repeat step 2 until the queue is empty.

Python 3 (native, no NetworkX/matplotlib)

from collections import deque

# BFS from given source s
def bfs(adj, s):
    # Create a queue for BFS
    q = deque()

    # Initially mark all the vertices as not visited
    # When we push a vertex into the q, we mark it as
    # visited
    visited = [False] * len(adj);

    # Mark the source node as visited and enqueue it
    visited[s] = True
    q.append(s)

    # Iterate over the queue
    while q:

        # Dequeue a vertex from queue and print it
        curr = q.popleft()
        print(curr, end=" ")

        # Get all adjacent vertices of the dequeued
        # vertex. If an adjacent has not been visited,
        # mark it visited and enqueue it
        for x in adj[curr]:
            if not visited[x]:
                visited[x] = True
                q.append(x)

# Function to add an edge to the graph
def add_edge(adj, u, v):
    adj[u].append(v)
    adj[v].append(u)

# Number of vertices in the graph
V = 5

# Adjacency list representation of the graph
adj = [[] for _ in range(V)]

# Add edges to the graph
add_edge(adj, 0, 1)
add_edge(adj, 0, 2)
add_edge(adj, 1, 3)
add_edge(adj, 1, 4)
add_edge(adj, 2, 4)

# Perform BFS traversal starting from vertex 0
print("BFS starting from 0: ")
bfs(adj, 0)

Python 3 (NetworkX/matplotlib)

import networkx as nx
import matplotlib.pyplot as plt
from collections import deque

G = nx.Graph()
G.add_edge(1, 2)
G.add_edge(1, 3)
G.add_edge(1, 5)
G.add_edge(2, 3)
G.add_edge(3, 4)
G.add_edge(4, 7)
G.add_edge(4, 6)
G.add_edge(6, 7)
G.add_edge(7, 8)
G.add_edge(4, 5)

# explicitly set positions
pos = {1: (0, 0), 2: (-1, 0.3), 3: (2, 0.17), 4: (4, 0.75), 5: (5, 0.03), 6: (6, 0.49), 7: (7, 0.25), 8: (8, 0.65)}

options = {
    "font_size": 36,
    "node_size": 3000,
    "node_color": "white",
    "edgecolors": "black",
    "linewidths": 5,
    "width": 5,
}
nx.draw_networkx(G, pos, **options)

# Set margins for the axes so that nodes aren't clipped
ax = plt.gca()
ax.margins(0.20)
plt.axis("off")
plt.show()

def bfs(G: nx.Graph, start: int) -> list:
    # Initialize an empty list to keep track of visited nodes
    visited = []
    # Initialize a deque (double-ended queue) with the starting node
    queue = deque([start])

    # Continue the loop as long as there are nodes in the queue
    while queue:
        # Remove and return the leftmost node from the queue
        node = queue.popleft()
        # Check if the node has not been visited
        if node not in visited:
            # Add the node to the visited list
            visited.append(node)
            # Retrieve all the neighbors of the current node
            neighbours = G.neighbors(node)
            # Iterate through each neighbor
            for neighbour in neighbours:
                # Add each neighbor to the queue for future exploration
                queue.append(neighbour)

    # Return the list of visited nodes in the order they were visited
    return visited

bfs(G, 1)
